DN40 Male Thread

1-1/2'' Hot Water Circulation Pump RS25-8G Circulating Pump 220V

Be the first to review this product

$149.99

SKU: P0044

In stock

1). Liquid temperature range of -10-+110 maximum working pressure: 6bar
2). Power: 220-240V, frequency 50/60Hz
3). The motor thermal protector Customization:
4). Material: cast iron, PP, ceramic
5). Installation position:axis horizontal installation
6). Pump equipment: automatic control do not overload single-phase motor casting pump body length 180 mm Single phase pipeline pump flow switch
Loading...

Description

Details

Please note that the plug is European Plug

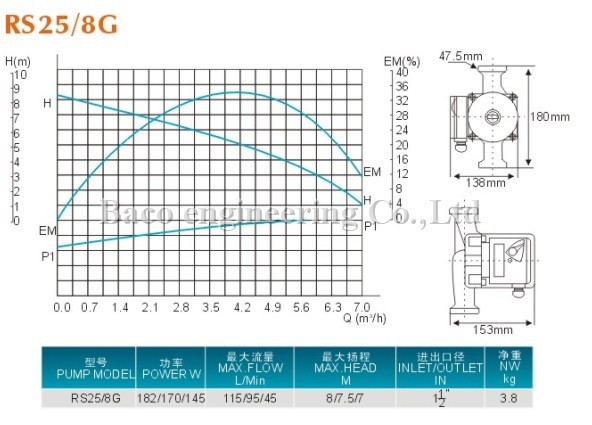

Model Rated power Inlet/Outlet Max flow Max head Voltage/Freq
w IN l/min m v/hz
RS25/8G 182/170/145

G 1-1/2''

115 8 220/50

Application:circulating water pump

Used in Suitable for city buildings, suburban villas, houses, water and pressurized with industrial equipment, air conditioning, boilers, solar circulating water, hot water circulating warm and so on.

Advantages:

No leakage, low noise, environmental protection, aesthetics, ease of installation and so on.

Features:

High temperature resistance, antifraying,long life, full-automatic, maintenance-free, super silent, leak-tightness, high efficiency, low consumption, high flow and convenient installation advantages. Built-in high sensitive electronic sensors, the water will be flow when we open the switch.

Performance Datas:

1).Liquid temperature range of -10-+110 maximum working pressure: 145PSI

2).Power: 220V, frequency 50/60Hz

3).The motor thermal protector Customization:

4). Material: cast iron, PP, ceramic

5). Installation position:axis horizontal installation

6). Pump equipment: automatic control do not overload single-phase motor casting pump body length 180 mm Single phase pipeline pump flow switch

This is just the installation drawing, not the picture of product.

012014environment

Additional

Additional Information

package N/A
the_size_of_solar_panel N/A
the_battery N/A
the_power_of_pump N/A
max_flow_quantity_of_pump N/A
max_water_height_of_pump N/A
